Building “Tetrisgame”: A Full CI/CD Pipeline on AWS with ECS Fargate, ECR, CodeBuild & CodePipeline


ree

In this project, I wanted to take something simple and visual – a Tetris-style web page – and use it to practice real DevOps on AWS:


  • Containerize an app with Docker

  • Push images to Amazon ECR

  • Run containers with ECS Fargate

  • Expose it to the internet

  • Automate builds and deployments using CodeBuild + CodePipeline

  • Deal with real-world issues like ARM vs AMD64 images, security groups, and image pulls



The result is a small but production-style pipeline that you can reuse for any web app, not just Tetris.



Why this project?



Most “hello world” AWS tutorials stop at “I ran a container.”

I wanted something that demonstrates:


  1. End-to-end flow: GitHub → Docker build → ECR → ECS → Public URL

  2. Cloud-native services: ECR, ECS Fargate, IAM, CodeBuild, CodePipeline

  3. CI/CD mindset: Every git push triggers a fully automated deployment

  4. Security & architecture awareness: VPCs, security groups, image platforms


The app itself is intentionally simple: a static HTML Tetris board served via NGINX.

The interesting part is the AWS plumbing and automation.


Nice, this is a great project to turn into a blog – it shows Docker, AWS, CI/CD, AND you actually got it running end-to-end.


Below is a full, detailed blog post you can paste into your site / Medium / LinkedIn.

I’ll write it as you explaining the project.


You can tweak names (cluster, repo, etc.) if needed.

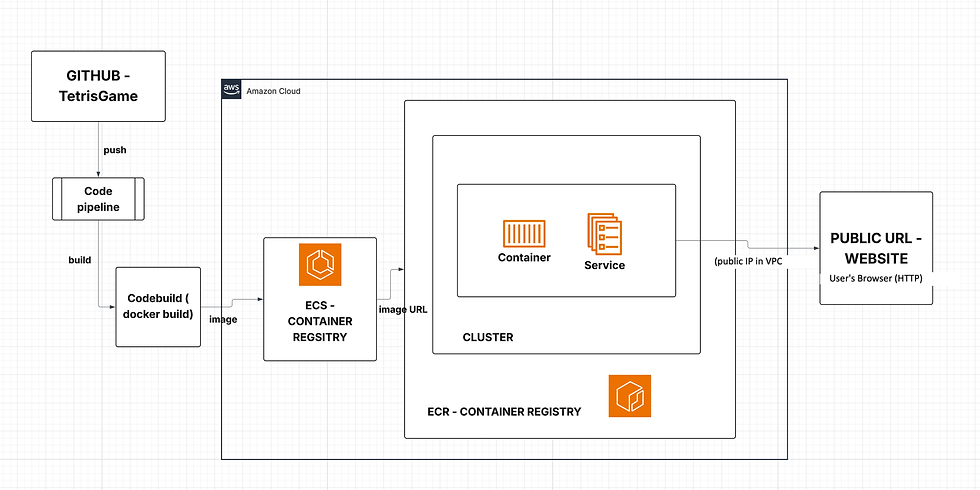

High-Level Architecture


ree

Core services:


  • GitHub – source of truth for your code

  • Docker – builds your app into an image

  • ECR – Docker image registry

  • ECS Fargate – runs your container without managing servers

  • CodeBuild – builds and pushes images automatically

  • CodePipeline – wires GitHub → CodeBuild → ECS deployment

  • VPC + Security Groups – networking & access control





Phase 1 – Simple Tetris Web UI + Dockerfile



I didn’t start with a complex SPA. I used a simple static HTML mock of a Tetris board, just to have something visual.



index.html


<!DOCTYPE html>
<html lang="en">
<head>
  <meta charset="UTF-8" />
  <title>My AWS Tetris</title>
  <style>
    body {
      background: #111;
      color: #eee;
      font-family: Arial, sans-serif;
      text-align: center;
    }
    #board {
      margin: 30px auto;
      width: 200px;
      height: 400px;
      background: #222;
      display: grid;
      grid-template-columns: repeat(10, 20px);
      grid-template-rows: repeat(20, 20px);
      gap: 1px;
    }
    .cell {
      width: 20px;
      height: 20px;
      background: #333;
    }
  </style>
</head>
<body>
  <h1>My AWS Tetris</h1>
  <div id="board"></div>
  <script>
    const board = document.getElementById('board');
    for (let i = 0; i < 200; i++) {
      const cell = document.createElement('div');
      cell.classList.add('cell');
      board.appendChild(cell);
    }
  </script>
</body>
</html>

This just renders a 10×20 grid that looks like a Tetris board.



Dockerfile (NGINX)



I used NGINX as a static file server:

FROM nginx:alpine

# Copy our static site into nginx's default html directory
COPY index.html /usr/share/nginx/html/index.html

EXPOSE 80

CMD ["nginx", "-g", "daemon off;"]

Build and test locally:

docker build -t tetris-game-repo:latest .
docker run -p 8080:80 tetris-game-repo:latest

Then open:

If you see the “My AWS Tetris” grid, Docker + app are working.



ree

Phase 2 – Push the Image to Amazon ECR (us-east-1)


Next, I pushed this image to Amazon ECR (Elastic Container Registry) in us-east-1.


What is ECR?


Amazon ECR is AWS’s managed Docker image registry.

Think “private Docker Hub inside AWS” with IAM-based auth.


Steps



  1. In the AWS console → ECR → Create repository


    • Name: tetris-game-repo

    • Private repository

    • Region: us-east-1


  2. Login from your terminal (using AWS CLI):


aws ecr get-login-password --region us-east-1 \
  | docker login \
    --username AWS \
    --password-stdin 115283375912.dkr.ecr.us-east-1.amazonaws.com

  1. Tag and push:


docker tag tetris-game-repo:latest \
  115283375912.dkr.ecr.us-east-1.amazonaws.com/tetris-game-repo:latest

docker push 115283375912.dkr.ecr.us-east-1.amazonaws.com/tetris-game-repo:latest

Now the image lives in AWS and can be pulled by ECS.


ree

Phase 3 – Run the Container with ECS Fargate


What is ECS Fargate?


  • ECS – Elastic Container Service, an orchestrator for containers

  • Fargate – serverless compute for containers; no EC2 instances to manage


You define how the container should run (task definition) and ECS handles scheduling and running it on Fargate.


3.1 – Create Cluster


AWS console → ECS → Clusters → Create cluster


  • Name: tetris-cluster

  • Infrastructure: Fargate


ree

3.2 – Task Definition



Task Definition = “how to run this container.”


  • ECS → Task Definitions → Create new


    • Family: tetris-task

    • Launch type: Fargate

    • CPU: 0.25 vCPU

    • Memory: 0.5 GB

    • Execution role: ecsTaskExecutionRole (or auto-create)


ree

Container:



3.3 – Service (with public IP, no load balancer)



Service = “keep N copies of this task running.”


  • ECS → Clusters → tetris-cluster

  • Create → Service


    • Launch type: Fargate

    • Task definition: tetris-task

    • Service name: tetris-task-service-…

    • Desired count: 1



Networking:


  • VPC: default VPC

  • Subnets: 1–2 public subnets (e.g. in us-east-1a and us-east-1b)

  • Security group:


    • Inbound rule: HTTP, port 80, source 0.0.0.0/0


  • Auto-assign public IP: ENABLED



ree

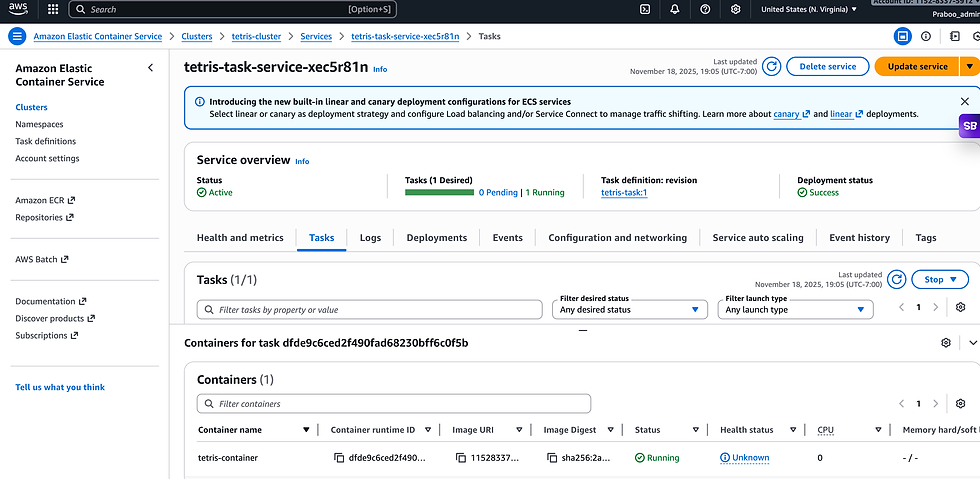

After the service starts, go to:


  • Cluster → Tasks → select the RUNNING task

  • Check the Public IP in the Network section

  • Open in browser:


You should see the Tetris board, now served from ECS Fargate in us-east-1.( for now i suspended it)

ree



Phase 4 – Automating Everything with CodeBuild & CodePipeline


Manually running docker build, docker push, and updating ECS is boring and error-prone.


I wanted full CI/CD:


git push → pipeline builds image → pushes to ECR → updates ECS service.

4.1 – GitHub Repo




Contents:


  • index.html

  • Dockerfile

  • buildspec.yml




4.2 – buildspec.yml for CodeBuild (us-east-1)



This file tells CodeBuild how to build and push the Docker image and produce imagedefinitions.json for ECS.

version: 0.2

env:
  variables:
    REPOSITORY_URI: 115283375912.dkr.ecr.us-east-1.amazonaws.com/tetris-game-repo
    CONTAINER_NAME: tetris-container

phases:
  pre_build:
    commands:
      - echo Logging in to Amazon ECR in us-east-1...
      - aws ecr get-login-password --region us-east-1 | docker login --username AWS --password-stdin $REPOSITORY_URI
      - COMMIT_HASH=$(echo $CODEBUILD_RESOLVED_SOURCE_VERSION | cut -c 1-7)
      - IMAGE_TAG=${COMMIT_HASH:=latest}

  build:
    commands:
      - echo Building Docker image...
      - docker build -t $REPOSITORY_URI:$IMAGE_TAG .

  post_build:
    commands:
      - echo Pushing image...
      - docker push $REPOSITORY_URI:$IMAGE_TAG
      - echo Writing imagedefinitions.json for ECS...
      - printf '[{"name":"%s","imageUri":"%s"}]' "$CONTAINER_NAME" "$REPOSITORY_URI:$IMAGE_TAG" > imagedefinitions.json

artifacts:
  files:
    - imagedefinitions.json

Key idea:


  • REPOSITORY_URI = ECR repo in us-east-1

  • CONTAINER_NAME = must match ECS container name (tetris-container)

  • Output: imagedefinitions.json for ECS deployment



4.3 – CodeBuild project



AWS Console → CodeBuild → Create build project


  • Name: tetris-game-build

  • Source: GitHub → Tetrisgame repository

  • Environment:


    • Managed image

    • OS: Amazon Linux 2

    • Standard runtime

    • Privileged mode: enabled (so Docker works)


  • Buildspec: “Use buildspec.yml from source”

  • Artifacts: none (handled by CodePipeline)




4.4 – CodePipeline


AWS Console → CodePipeline → Create pipeline


  • Name: tetris-game-pipeline

  • Source stage:


    • Provider: GitHub

    • Repo: prabhu31297/Tetrisgame

    • Branch: main


  • Build stage:


    • Provider: CodeBuild

    • Project: tetris-game-build


  • Deploy stage:


    • Provider: Amazon ECS

    • Cluster: tetris-cluster

    • Service: tetris-task-service-...

    • Image definitions file: imagedefinitions.json




Once created, CodePipeline immediately does one full run:


  • Pull source → Build Docker → Push to ECR → Update ECS service



Phase 5 – CI/CD in Action


Now the workflow is simple:


  1. Edit index.html:


<h1>My AWS Tetris – CI/CD Test</h1>

  1. Commit and push:


git add index.html
git commit -m "CI/CD test heading"
git push

  1. CodePipeline picks up the push and runs:


    • Source → Build → Deploy


  2. After the pipeline succeeds, refresh:


http://<TASK_PUBLIC_IP>/

You’ll see the updated heading. No manual Docker or ECS steps.



Explaining Each AWS Service (for Interview / Blog Readers)



ECR (Elastic Container Registry)

Used as a private Docker registry. The pipeline pushes images here, and ECS pulls them to run tasks. It’s integrated with IAM, so only allowed roles can pull/push.


ECS (Elastic Container Service)

Orchestrates container workloads. I used Fargate launch type to avoid managing EC2 instances. ECS ensures that the desired number of tasks stay running.


Fargate

Serverless compute engine for containers. I don’t manage servers, I just pay per vCPU/GB. Great for small services and labs like this.


CodeBuild

Build system in the cloud. It reads buildspec.yml, runs docker build, logs into ECR, pushes the image, and produces imagedefinitions.json. Running builds in AWS (amd64) avoids Mac ARM issues.


CodePipeline

The CI/CD orchestrator. Watches GitHub for changes, triggers CodeBuild, then triggers ECS deployment. It gives a visual pipeline showing each stage.


VPC & Security Groups

The container runs in a VPC subnet with a security group that allows inbound HTTP/80 from the internet. This is how the task’s public IP becomes reachable in the browser.
